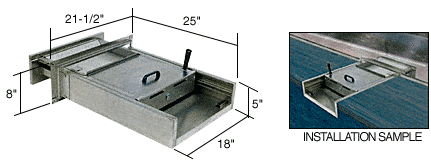

Transaction and Cash Box Drawer

2

Transaction and Cash Box Drawer are for drive-in or walk-up business that allows the clerk to maintain customer contact while safely secure inside. The customer's view of cash drawer contents is blocked by a hinged locking cover. The Clerk can pass small packages by removing the deal tray if desired . The operating handle uses a self-contained locking device.

This unit has built in slots for credit card receipts. Constructed of stainless steel.

Removable Deal Tray for Passing Larger Items

Lockable Cash Drawer

Fully Assembled and Ready for Installation

Measures 18: WIDTH X 25 DEEP X 5 INCHES HIGH

flip lid  Transaction and Cash Box Drawer

$ 2263.00 Plus Freight

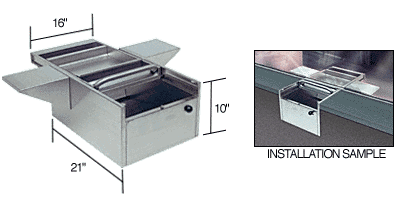

Deep Transaction Drawer With Cash Tray

Sliding Deal Tray and Pass-Thru Drawer

Deep Transaction Drawer with Cash Tray will serve walk-up business, protect employees and inventory while allowing transfer of cash, credit cards or small products. Unique design will enable the transfer of motor oil, six-packs of beverages, and other bulk products. All these functions are built into one compact unit engineered for security and ease of operation. Self-contained, smooth operating locking mechanism requiring no keys. This model also has 10 gauge steel bullet resistant liners in front and back. Two attachable purse shelves are included with the unit.

Sliding Deal Tray and Pass-Thru Drawer handles two jobs using one unit. The sliding lid has a built in deal tray for transferring cash and small items by sliding the lid forward and back. Bulk items can be passed through the larger cavity below. The five inch (127 millimeter) wide cross member on the top of the unit allows for through wall installations, or the unit can be mounted on a counter top with the window notched around it.

Sliding Deal Tray and Pass-Thru Drawer handles two jobs using one unit. The sliding lid has a built in deal tray for transferring cash and small items by sliding the lid forward and back. Bulk items can be passed through the larger cavity below. The five inch (127 millimeter) wide cross member on the top of the unit allows for through wall installations, or the unit can be mounted on a counter top with the window notched around it.

Allows for Transfer of Larger Items

Constructed of Stainless Steel

Attachable Purse Shelves Included

 For Transferring Large or Small Items

 Stainless Steel Construction Provides Level One Protection

$ 1450.00 Plus freight  recommend common carrier delivery

CREDIT CARD ORDERS ADD 3.5% IF PAID BY CREDIT CARD

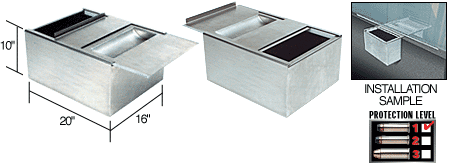

   Deal Tray Drawer 16” wide X 20 “ deep x 10 “ high

Model SP-DTD2010ST

Call  1 915-240-4747  for questions

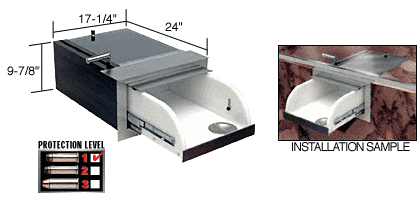

 Counter Mounted    Large Capacity    Transaction Drawer

Our counter mounted  Large Capacity Counter Mount Transaction Drawers are ideal for drive-up and walk-up service.

A Lexan lid allows clear view of contents while protecting direct entry of outside air.

Stainless steel front panel of unit pivots up as drawer is extended.

Drawer is weather-resistant. Push button latch keeps drawer lids locked when closed.

Choose from Standard Large Capacity or Oversized Models

Styles for All Popular Mounting Options Including Thru-Wall and Counter Mount Types

Level 1 Bullet Resistant Protection

 LC17Large Capacity Bullet Resistant

level 1  Bullet Protection

Counter Mounted Transaction Drawer

Pricing

 In counter Model $ 2515.00 Plus freight

Thru Wall Model $ 2595.00 Plus freight

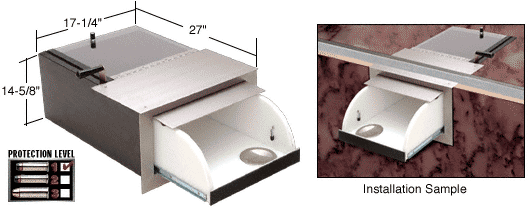

Oversized Capacity  Transaction Drawer

Counter Mounted Transaction Drawer

Additional Product Information:

Exterior

14"5/8 " DEEP 17"1/4" WIDE  X 27"

Interior

The Oversized Transaction Drawer is perfect for convenience stores and is ideal to transfer a gallon of milk or two liter bottles of soda.

Standard Large Capacity and Oversized Transaction Drawers offer both Counter Mounted and Thru-Wall models.

 All Drawers meet Protection Level 1 requirements

Model #  17 x 27 "  Oversized Capacity Counter Mounted  or thru wall models of Transaction Drawer  s

 Stainless Steel  Drawer

Pricing

 In counter Model $ 2840.00

Thru Wall Model $ 2845 .00

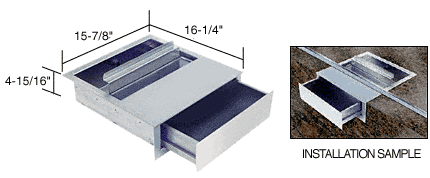

Stainless Steel Deal Drawer is built to be recessed in the counter top along the front edge to achieve a flush appearance.

Glazing above the flat hood portion provides a barrier that doesn't obstruct operation of drawer.

A full width handle across the rear of the drawer pushes it smoothly along ball bearing glides for easy operation.

Lexan lid will not open when drawer is extended.

Drawer unit has stainless steel construction.

Complete unit is fully assembled and ready for installation.

Flush Appearance

Ball Bearing Glides

Model  16x16 Stainless Steel  Drawer

$ 1665.00 Plus Freight

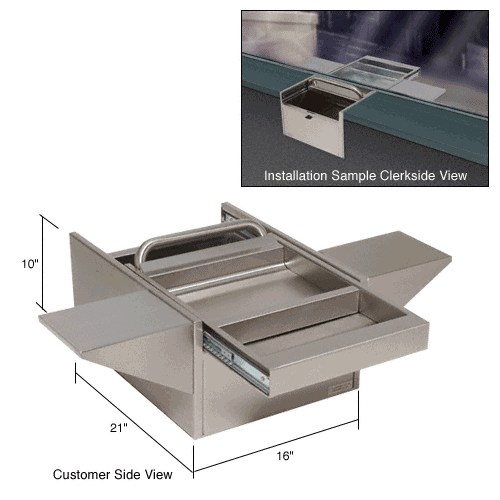

Deep Package  Drawer with Cash Tray

will serve walk-up business, protect employees and inventory while allowing transfer of cash, credit cards or small products.

Unique design will enable the transfer of motor oil, six-packs of beverages, and other bulk products.

All these functions are built into one compact unit engineered for security and ease of operation.

Self-contained, smooth operating locking mechanism requiring no keys.

This model also has 10 gauge steel bullet resistant liners in front and back.

Two attachable purse shelves are included with the unit.

Model  Deep  Stainless Steel  Transaction  Drawer

Pricing

$3450.00 Plus freight

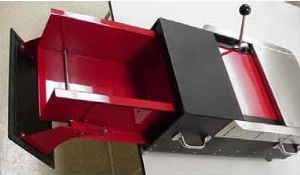

Manual Transaction Drawer

This drawer like the powered model is constructed of high tech machined components and designed for the rigors of a drive-thru environment.

The drawer was built to provide the maximum in customer and employee conveniences.

 The drawer’s design allows for easy operation using a 2 to 1 movement ratio.  For every one inch of force applied to the handle the drawer moves two inches.  An additional operator convenience is the use of compression seals, versus brushes, around the exterior door and a slide door around the handle preventing outside air from entering when the inside door is open and the handle is being moved. Customers can access the drawer either from the top, in taller vehicles, or from the front.  This drawers large transaction hold down bar is also a plus preventing currency and paper transactions from blowing away.

The outer shell of this drawer is 11ga. cold finished steel and the drawer bin is .050” aluminum.  The .080” aluminum door drops down and toward the building reducing the chance of the operator hitting a vehicle.  The bin size is 16” deep x 11” wide x 6-1/4” tall with a maximum extension of 15”.

The Manual Transaction Drawer comes with a one year limited parts warranty and can be shipped overnight via UPS if an emergency requires it.

The normal lead-time on this drawer is 2 weeks.

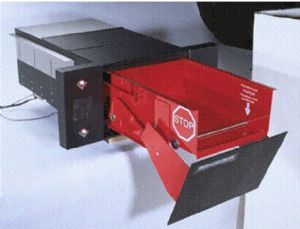

Powered Transaction Drawer™

The  fully powered Transaction Drawer™ is very different from other drawers.

This drawer does not use gears, pulley or cables like most others.  It uses a twin lead ball screw rod assembly which enables it to extend farther (18 inches), carry heavier (25 lbs.) and larger items (16”x12 ½”x5 ¾”) than most other drawers. The transaction is easier for the customer because you can get the drawer closer to the vehicle reducing the chance of them mishandling materials.  The drawer uses flat compression seals, versus brushes, which increases the ergonomics of the work area by reducing noise while preventing cold air and contaminants from entering the building.

The Transaction Drawer  also includes an electronic brake. The brake stops the drawer immediately preventing any coasting which occurs with other drawers, resulting in damage to customer vehicles. This drawers large transaction hold down bar is also a plus preventing paper transactions from blowing away.  The drawer was designed for use with new or retrofit construction. This is a UL Listed and Classified product.

DRAWER AUDIO
The Transaction Drawer™ is available with a full duplex audio system.  Customer audio components include a built-in microphone, speaker and call button.  The internal console includes gooseneck microphone, built-in speaker and controls.   The internal audio used with the drawer is expandable for use with multiple lanes.  Therefore the price is not included until the customer determines their specific needs


SECURITY DRAWERS

Model # SP672350

Extending Deal Tray

 is the economical security solution for cashier windows, ticket windows, outdoor ticket and payment kiosks and other high-risk areas. Suitable for walk-up or drive-thru applications in interior and exterior environments, the 672350 features an extending tray housing and a removable deal tray for installation in countertops with a window above, in kiosks or through other window arrangements. The face of the extending tray is equipped with an UL® Level 3 bullet resistant insert for additional security in the closed position.

BBR II" Model # SP672300 Drive-Thru Drawer

is designed to maximize operator security in adverse environments such as access control kiosks, drive-thru banking, detention centers, fast food restaurants and convenience stores. An interlocking lid cover prevents direct physical contact between the operator and customer. The faceplate is constructed of brushed stainless steel and reinforced with bullet resistant UL® Level 3 material. The manually controlled transaction-locking mechanism prevents unauthorized access and the drop door construction requires minimal space for access to the transfer area during vehicle transactions.

Pass-Thru Cassette Models

SP 670330 and  SD670331

UL® Level III stainless steel security drawers

for transferring items to and from the operator without opening doors. Use these dual action pass-thru drawers for small transactions (i.e. money, credit cards) or remove the deal tray and pass large items. Model 670330 has a built-in speaker, which attaches to existing intercom systems. Model 670331 has the built-in speaker and its own stand-alone intercom system standard. All units are finished in brushed stainless steel.

Duel -Drawers: One Unit, Two Functions
Use the built-in sliding deal tray for passing small product transactions (i.e. money, credit cards). Unlock the deal-tray to reveal the bulk transfer area below. Optional Weather Guard frame keeps wind and weather from the buildings interior. All units are finished in brushed stainless steel and shipped assembled.
