  Talk Through for  TICKET WINDOW COMMUNICATION

 Window Grill Speak Thrus consists of two   5" 1/8"  grills  with one  center screw  may be used on various thickness of glass





Model Standard aluminum  window Grill Plates


 un polished Aluminum Speak-Thru Window Grill

consists of two plates ,2 cork washers & one center screw,screw length can vary for different thickeness of glass



 Can Be Used With Glass up to 1/4" (6 mm) Thick  or thicker with a longer screw

Designed to allow audible transmission of voice requests at ticket windows, box offices and more.

Designed  to prevent tampering from the outside, and stop drafts to the interior.

 Each unit is individually boxed with cork gaskets and mounting screw  for installation on glass up to 1/4 inch (6 millimeter) thick.

For thicker glass up to 3-3/4 inch a cut down screw of  four inches will be required

This Model Requires  a minimum hole diameter of 2-1/4 inch   and will cover holes up to 4-1/4 inch  as the unit is 5 1/8" in diameter

 Recommended hole diameter is three to four inches for best sound transmission

does not amplify the voice

Note this  is a Grill   Not a  Amplified  intercom as pictured below

$ 87.00 each plus shipping







Model  Polished aluminum



Bright Anodized  Aluminum No-Draft Speak-Thru



Can Be Used With Glass up to 1/4" (6 mm) Thick

No-Draft Speak-Thru  are designed to allow audible transmission of voice requests at ticket windows, box offices and more. They prevent tampering from the outside, and stop drafts to the interior. T  Each unit is individually boxed with gaskets and mounting screws for installation on glass up to 1/4 inch (6 millimeter) thick. For thicker glass up to 3-3/4 inch (95 millimeters), you must use the optional four inch (102 millimeter) screws. This Unit require a minimum hole diameter of 2-1/4 inch (57 millimeter), and will cover holes up to 4-1/4 inch (108 millimeter). Recommended hole diameter is 4 inches



  $97.00 each plus shipping





Model  Black Finish


Dark Bronze Black   Aluminum   Speak-Thru



Can Be Used with Glass up to 1/4" (6 mm) Thick



 Speak-Thru are designed to allow audible transmission of voice requests at ticket windows, box offices and more. They prevent tampering from the outside and stop drafts to the interior.   Each unit is individually boxed with gaskets and mounting screws for installation on glass up to 1/4 inch (6 millimeter) thick. For thicker glass up to 3-3/4 inch (95 millimeters), you must use the   four inch  cut down screw , requires  a minimum hole diameter of 2-1/4 inch (57 millimeter), and will cover holes up to 4-1/4 inch (108 millimeter). Recommended hole diameter is 4 inches

$ 97.00 Each  plus shipping







Model  Bright Gold speak thru


Bright Gold Anodized Finish Aluminum No-Draft Speak-Thru



  Fits Glass up to 1/4" (6 mm) Thick



 designed to allow audible transmission of voice requests at ticket windows, box offices and more. They prevent tampering from the outside and stop drafts to the interior. Each unit is individually boxed with gaskets and mounting screws for installation on glass up to 1/4 inch (6 millimeter) thick. For thicker glass up to 3-3/4 inch (95 millimeters), you must use the optional four inch screws Speak-Thru require a minimum hole diameter of 2-1/4 inch (57 millimeter), and will cover holes up to 4-1/4 inch (108 millimeter). Recommended hole diameter is four inches

$ 107.00 each plus freight



 Non bullet resistant Model Speak thru Window Units

 Available in 5 inch and 7 inch Diameters

NON BULLET RESISTANT RATED Higher Security Grills

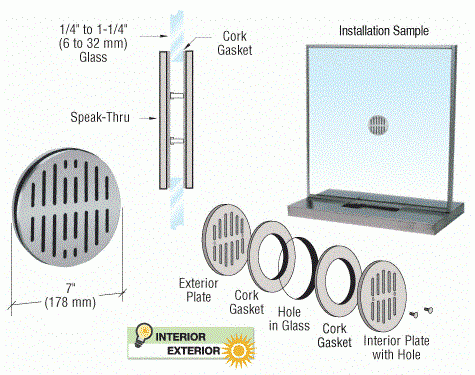

Stainless Steel Speak-Thru available in 5 " and 7" provides natural voice transmission.

Offset slots in front and rear prevent tampering from the outside, and stops drafts to the interior.

Speak-Thru has a brushed stainless finish, and comes in two sizes.

Screws are included that will this item to accommodate glazing thicknesses of up to 1-1/4 inches (32 millimeters) thick

Provides Natural Voice Transmission

Eliminates Drafts as slots are staggared

    7" diameter Price 1 unit  $ 250.00  plus shipping        4 + unit  $ 235.00  each plus shipping



 5" diameter Price 1 unit  $ 240.00  plus shipping     4 + unit  $ 225.00  each plus shipping







Screened Opening for Insect Free Environment

4" and 6" (102 and 152 mm) Models Available

in Two Finishes

Choice of Metal or Lucite Cover

Covered Speak-Thrus are available with two styles of covers: all metal, or metal outer ring with Lucite vision port.

Both styles are screened to provide an insect free environment.

These heavy duty units are available in satin anodized or duranodic bronze finishes.

Both 4 and 6 inch (102 and 152 millimeter) sizes are made to be glazed in 1/4 inch (6 millimeter) glass.



The four inch (102 millimeter) model requires a 3-1/2 inch (89 millimeter) diameter hole.

 4 SGMSC $185.oo each Metal cover

 4SGLSC  $165.oo each Lucite cover



The six inch (152 millimeter) model requires a 5-1/2 inch (140 millimeter) diameter hole.

6SGMSC $226.oo each Metal cover

 6SGLSC $199.oo each Lucite cover

Speak Thru Grills

Bullet Resistant Speak Thru Grills

Correctional Speak Thru Intercoms

Amplified Wintow Intercoms for ticket windows or cash window

Call for Quantity discounts

Major Credit Cards Accepted

 Product Questions: 915-240-4747



Bullet Resistant Grill for level 3 Protection

6" Round Heavy Stainless Steel requires a 5" hole in glass

Level 3 Bullet Resistant Speak-Thru

 6" Round Heavy Stainless Steel Level 3 Bullet Resistant Speak-Thru

is designed for use with bullet resistant glass, acrylic or polycarbonate.

 Made of heavy stainless steel, the concentric circular louvers are spaced to deflect projectiles entering the cavity between the interior and exterior surfaces without interfering with conversation.

Accommodates glazing thicknesses from 1-3/16 to 1-7/8 inch (30 to 48 millimeter).

 $ 525.00 plus greight



For Information Call 915-240-4747

NON bullet Resistant Speak Thru Grill Not Rated

Steel Speak-Thru available in 5 " and 7" provides natural voice transmission. Offset slots in front and rear prevent tampering from the outside, and stops drafts to the interior. Speak-Thru has a brushed stainless finish, and comes in two sizes. Screws are included that will this item to accommodate glazing thicknesses of up to 1-1/4 inches (32 millimeters) thick





5" Square  Bullet Resistant Speak-Thru

 S5L2  $ 210.00 available in level 2   bullet resistant call for price

 S5L3  $ 235.00 available in level  3 bullet resistant call for price

7" square Speak thru  cover Bullet Resistant



 S 7C2  $ 250.00 available in level  2 bullet resistant

Level 3

  S7C3  $ 265.00 available in level  3 bullet resistant







Clear Vision Bullet Resistant Speak-Thrus

Virtually Unobstructed Vision

Disc Overlap Prevents Direct Entry of Projectiles While Allowing Natural Voice Transmission



With  two levels of protection {Level 1 and Level 3 } and a clear field of vision.

The unit is easy to install. Just drill a six inch (152 millimeter) diameter hole in the bullet resistant window, surrounded by three 5/16 inch (8 millimeter) holes spaced at 120 on a 7-1/2 inch (190 millimeter) diameter (template included).

Then secure the 10 inch (254 millimeters) Acrylic or Lexgard Disc using the Stainless Steel Studs provided with the unit.

The space between the window and disc allow for clear voice transmission.

 The 10 inch (254 millimeter) disc provides enough overlap to prevent direct entry of projectiles.

Backer 101 $ 350.00 plus freight  for Level level 1 bullet Resistance Protection

Backer 101 $ 375.00 plus freight  for Level level 2 bullet Resistance Protection

Backer 101 $ 395.00 plus freight  for Level level 3 bullet Resistance Protection

Note : can only be installed on Polycarbonate  or acrylic bullet resistant  , and Lexguard





Clear Vision Bullet Resistant Speak-Thrus not only offer two levels of protection but provide a clear field of vision. The unit is easy to install. Just drill a six inch (152 millimeter) diameter hole in the bullet resistant window, surrounded by three 5/16 inch (8 millimeter) holes spaced at 120 on a 7-1/2 inch (190 millimeter) diameter (template included). Then secure the 10 inch (254 millimeters) Acrylic or Lexgard Disc using the Stainless Steel Studs provided with the unit. The space between the window and disc allow for clear voice transmission. The 10 inch (254 millimeter) disc provides enough overlap to prevent direct entry of projectiles.

Backer 103 $ 450.00 plus freight  for Level level 1 bullet Resistance Protection

Backer 101 $ 475.00 plus freight  for Level level 2 bullet Resistance Protection

Backer 101 $ 495.00 plus freight  for Level level 3 bullet Resistance Protection

Note the size of the backer is 4 inches larger that the hole in your glass

Note : can only be installed on Polycarbonate  or acrylic bullet resistant  , and Lexguard





Amplified Ticket window Intercoms

Click here..... for more information about this product



 Note : if you have difficulty  hearing your customer you may need an amplified intercom

we offer several models either Ac Powered or Battery Powered

available with an  18 flex  inch microphone  or with headset adapter plug

for holes 3 inches to  3.5 inches without an adapter plate

 adapter plate is required 4" 5" or 6" inch holes sold seperate from intercom



we also offer a Bullet resistant Adapter insert for bullet resistant applications  as well as bullet resistant adapters which hold unit on glass
