 Lazy Susan wall  Pass Thru designed  for  passing items thru  walls or window



Lazy Susan Pass Wall Pass  Thru

 with built in  Vision  window Panel  Built into Drum  allows view of  contents before the  drum is turned to retrieve items

 note the  handle Cranks 180 Degrees to open or close pass thru





Outer dimensions 18" x 20" x 14"



Excellent for drive-up or walk-up service.

Interior will hold larger items such as a six pack of beverages, or a gallon of milk.

Built in latch prevents unwanted drum rotation.

    Unit is Constructed of stainless steel, bullet resistant plastic   ,

and 1-1/4 inch (32 millimeter) bullet protection Level 1 acrylic for the vision window.

The unit rotates 180º degrees by turning the crank handle.

In the locked position the stainless steel drum is turned to the customer for maximum security.

 Unit is weather stripped for outdoor use.

Drum extends behind and in front of the unit and is 15-1/4 in (387 millimeter) in diameter.

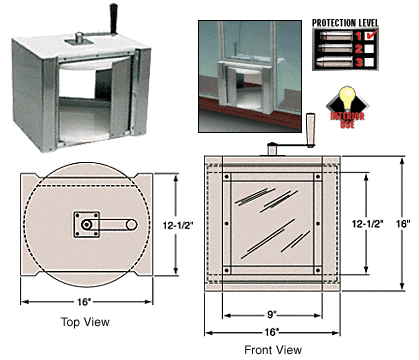

Lazy Susan  Pass Thru    Measures inside   16 inches wide   x   12 1/2" Depth  x     16 inches high

The Center of the Drum where the crank handle plate is measures  3" x 3"

This provides 4" 3/4 inches of space to attach drum to frame wall etc

Drum extends behind and in front of the unit and is   15-1/4 in (387 millimeter) in diameter.

Additionally keep in mind that the handle has to turn 180  degrees  to fully   open  Pass  Thru



 Level 1 Bullet Resistant  Lazy Susan Pass Thru  Window

 35 lb (15.88kg) Shipping Weight:

Satin Anodized Finish  Only  with  Rotating Service Window

A Great Addition For Drive-Thru or Walk-Up Service Windows



Call 915-240-4747



Standard Duty Non Bullet Resistant Model

Lazy Susan Pass Wall Pass  Thru with  clear tempered  1/4" glass panel  with a Satin Anodized  Alum Finish

Lazy Susan Service Window  Includes Clear tempered glass panel and a alum 5"1/8  Speak-Thru  Grill

the Rotary is used to serve packaged goods from an enclosed area.

Excellent for drive-up or walk-up service windows where  high security is not a major concern

Available in either a Satin anodized or duranodic bronze aluminum finish

the frame contains a fixed 1/4 inch (6 millimeter)  Clear Tempered glass panel and  Speak-Thru grill non amplified  in the upper portion.

Lower portion contains rotating drum that will provide pass-through of items

 The Unit has a Built in latch prevents unwanted drum rotation.

The entire unit fits a rough opening measuring 36-1/4 inches high x 16-1/8 inches wide (921 x 410 millimeters).

 Framed rotating drum by itself is available on special order.

 Lazy Susan Pass Thru  Window   w   Clear Tempered Glass  panel  in Satin Anodized Finish Frame









The Same Unit  available In Dark  Bronze  almost  Black Finish

Standard Duty Non Bullet Resistant Model

Lazy Susan Pass Wall Pass  Thru    with a Panel of clear tempered  1/4" glass panel Dura Bronze Black Framed Finish



Lazy Susan Pass Thru  Window

  Includes Clear tempered glass panel and a alum 5"1/8  Speak-Thru  Grill

Pass thru  is used to serve packaged goods from an enclosed area.

Excellent for drive-up or walk-up service windows where  high security is not a major concern

Available in either a Satin anodized or  bronze aluminum finish

the frame contains a fixed 1/4 inch (6 millimeter)  Clear Tempered glass panel and  Speak-Thru grill non amplified  in the upper portion.

Lower portion contains rotating drum that will provide pass-through of items

 The Unit has a Built in latch prevents unwanted drum rotation.

The entire unit fits a rough opening measuring 36-1/4 inches high x 16-1/8 inches wide (921 x 410 millimeters).

 Framed rotating drum by itself is available on special order.

Lazy Susan with bronze  Finish and   Clear Tempered Glass 1/4"  Vision PANEL



915-240-4747



Drum Only  Pass thru for panel trucks or for installation into thin walls





  Lazy Susan designed for those that want to build there own window around a framed rotating drum pass thru

can be easily riveted it place into a food truck  or other materials

is used to serve packaged goods from an enclosed area. Excellent for drive-up or walk-up service windows.

 Width 15" 5/8

Height 18" 3/8

Depth 13" 3/4

20 lbs

Note Dura bronze  is A Black Frame

And The Satin Anodized Frame is Aluminum Finish

Pass thru  is available in  dark - Bronze Black  Finish Framed

Pass Thru is   available in Satin Anodized Finish  Aluminum Finish  Framed

 Call 915-240-4747
