Pipe Inspection Products

1" CCTV Pipe Inspection Kit with infrared light source

includes a 100 foot Pushrod which is water tight up to 100 ft deep

field kit includes - mini color monitor - cable and camera and batteries

2 back up battery packs in kit for field inspection

no more wondering what stuck or blocking of pipes ducts , and more

optional - additional 100 foot floppy CCTV fiber cable available for an added length of 100 feet $ 550.00 each

chimneys , drains or anything to small to inspect

Added length floppy CCTV Fiber

optional - additional 33 foot floppy CCTV fiber cable available for an added length of 33 feet $ 350.00 each

optional - additional 65 foot floppy CCTV fiber cable available for an added length of 65 feet $ 450.00 each

optional - additional 100 foot floppy CCTV fiber cable available for an added length of 100 feet $ 550.00 each

optional - additional 165 foot floppy CCTV fiber cable available for an added length of 165feet $ 850.00 each

APPLICATIONS

Internal Inspection of pipe work from 1 1/4" to 6" diameter.

Sewer Pipes
Residential/Commercial Plumbing
HVAC Ductwork
Chimney Inspection

ADVANTAGES

1" Color Camera head with durable stainless steel housing
Waterproof up to 100 feet
Hinged 5.5 high resolution monitor with 6' cable
RCA video output for recording device
Dual rechargeable 12V batteries included
Flexible fiberglass pushrod with distance measurement- 100'.

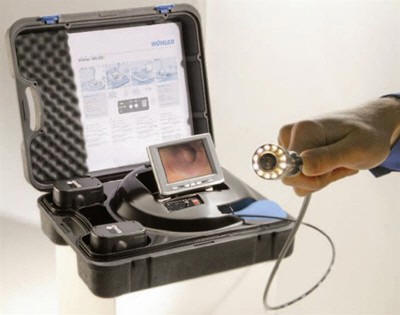

FSIU230 1" Stationary Inspection Kit-WITH A 100' Pushrod

The FSIU 230 compact service camera system is the ultimate value package for visual inspection of pipes ranging from 1 1/4" to 6" in diameter.

The 1" mini color camera head delivers a crystal clear image of any internal piping problem and is waterproof to a depth of 100 feet, making it perfect for water and sewer lines.

12 superbright white LEDs provide ample light with AGC (Automatic Gain Control) to prevent hot spots.

Dual 12V rechargable batteries allow for over 3 hours of cordless operation.

The TFT monitor provides brilliant picture quality which can be documented to a VCR or other electronic device through its RCA video output.

The glass-fiber plastic rod (6mm diameter) pushes the camera head through 90° bends with ease.

Distance indications on the pushrod cable pinpoint the exact location of the problem.

FSIU APPLICATIONS

Internal Inspection of pipe work from 1 1/4" to 6" diameter.

Sewer Pipes
Residential/Commercial Plumbing
HVAC Ductwork
Chimney Inspection

ADVANTAGES

1" Color Camera head with durable stainless steel housing
Waterproof up to 100 feet
Hinged 5.5 high resolution monitor with 6' cable
RCA video output for recording device
Dual rechargeable 12V batteries included
Flexible fiberglass pushrod with distance measurement- 100'.

SPECIFICATIONS

MONITOR

Resolution: 960 x 234 Pixels
TFT Display: 5.6" Diagonal
Video Out: RCA/FBAS
Weight: 4 lbs.
Batteries: 12V, NiCD
Oper Time: Approx. 1.5 hours
Ambient Temp: 0 to 40° C

MINI CAMERA HEAD

Type: 1/3" CMOS

Sensitivity: 3.0 Lux

Lens: f=2.5mm, F=2.0

Field of View: 120°

Waterproof ( IP 68): 100 ft.

Dimensions: Ø1 in. x 1.5 in.

Weight: .13 lbs
