  Fiberscope &  Bore scopes Kits & Pipe inspection Cameras

For Industrial and Security Applications

The rigid borescope kit employs a series of high-quality lenses for crystal clear images. This direct view scope is ideal for chambers with straight-line access. It comes with a 90 degree side-viewing mirror tube, and an optional 120 degree mirror tube for better inspection of the entire chamber. With the video kit, you can view and record high-resolution images for insurance, warranty, and other legal documentation purposes. It includes a 5’ detachable light guide, 12V portable light source, and battery power cable.

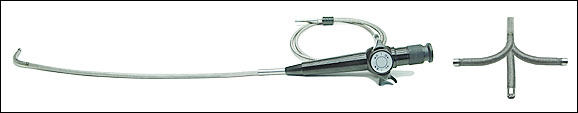

The flexible articulated fiberscope and borescope kits feature the latest technology in lens and fiber optics imaging The optic bundle has 10,000 fibers which ensures the optimal clarity of images. You can use a CCD camera to view and record the images for future viewing or documentation. The fibers are hexagonally packed for high quality video applications.

The Flexible Articulated Fiberscope (V-FA-K24) has a 120 degree two-way articulation which allows easy inspection and maneuverability within the most difficult to reach chambers. You can achieve direct view by controlling the tip of the probe with the lever on the eyepiece handle. It has a 5' attached guide light for sufficient light compensation in dark chambers.

The V-FS-A-C flexible fiberscope is ideal for inspections in rugged industrial environments. With its 90 degree viewing tip, it provides a variety of viewing angles. It also has an optional 120 degree tip. This widely known fiberscope is protected by a steel gooseneck sheathing to withstand rigorous industrial inspection applications. This fiberscope is one of the most affordable flexible fiberscopes in the market today. It has the same working dimensions as the articulated fiberscope.

IDEAL FOR:

Model Outside Diameter Working Length Angulation Angle of View Price
V-FA-2-6-10 6mm 1000mm ±120 55°* $4259.59
V-FA-2-6-15 6mm 1500mm ±120 55°* $5005.69
V-FA-2-6-20 6mm 2000mm ±120 55°* $6169.39
V-FA-2-6-30 6mm 3000mm ±120 55°* $8336.29
V-FA-2-4-10 4mm 1000mm ±120 50° $4420.19
V-FA-2-4-13 4mm 1300mm ±120 50° $4898.89
V-FA-2-4-15 4mm 1500mm ±120 50° $5628.99
V-FA-4-8-10 8mm 1000mm ±120 55°* $5872.99
V-FA-4-8-15 8mm 1500mm ±120 55°* $6907.19
V-FA-4-8-20 8mm 2000mm ±120 55°* $8198.39

Questions Please call 915-240-4747

Price: V-VS120 $9,995.00

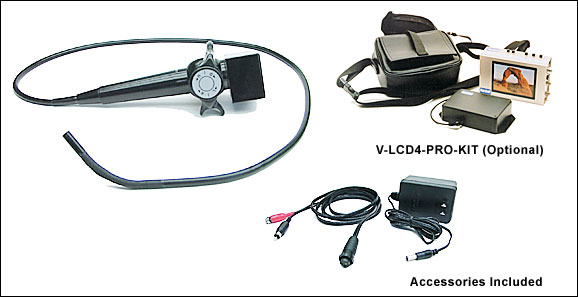

The V-VS120 is the worlds only B/W, high-resolution, low light videoscope designed specifically for elite Security applications including police surveillance, covert prison monitoring, S.W.A.T., boarder patrol and drug enforcement applications. Unlike a fiberscope which uses bundles of fibers to transfer the light from the tip of the scope to a camera, thus compromising the image quality and light sensitivity, this videoscope has a 1/4” CCD camera with a 4mm, f2.0 lens built right into the 8mm diameter tip. This gives the user the versatility of a fiberscope with the image quality of a high-resolution, low-light CCD camera. The 4-way articulation allows the unit to move 120 degrees each way in the horizontal direction and 120 to 160 degrees in the vertical. The 160 degree vertical motion allows the user to see back from the point of entry.

An optional monitoring kit (V-LCD4-PRO-KIT) is available. This kit includes a monitor, weatherproof carrying case and a rechargeable battery pack that can power both the videoscope and the monitor for up to one hour.






PROFESSIONAL VIDEOSCOPE Kits

THE BEST VALUE IN INDUSTRIAL VIDEOSCOPES ON THE MARKET! GUARANTEED. No longer do you have to have several devices and cables everywhere to do a difficult inspection, capture audio and video and still images. This system has everything built-in in a very easy to use package. The keyboard is splash proof and the Monitor/Control Unit/Lightsource snaps shut and has a convenient carrying handle that slips out to make transport easy and simple. The state-of-the-art Sony CCD coupled with the extra-white (5000 degrees Kelvin) metal halide light source provide a very bright and high resolution image on the integrated large LCD color monitor. The compact flash card makes capturing images, video, and audio a simple task. The USB connectivity of this unit also provides a great way to transfer all your inspection data to your computer



THE BEST VALUE IN LONG (UP TO 49.2 FEET) INDUSTRIAL NON-ARTICULATED VIDEOSCOPES ON THE MARKET! GUARANTEED. No longer do you have to have several devices and cables everywhere to do a difficult inspection, capture audio and video and still images. This system has everything built-in in a very easy to use package. The keyboard is splash proof and the Monitor/Control Unit/Lightsource snaps shut and has a convenient carrying handle that slips out to make transport easy and simple. The state-of-the-art Sony CCD coupled with the extra-white (5000 degrees Kelvin) metal halide light source provide a very bright and high resolution image on the integrated large LCD color monitor. The compact flash card makes capturing images, video, and audio a simple task. The USB connectivity of this unit also provides a great way to transfer all your inspection data to your computer.





Visual Inspection System for Pipes or narrow passages

The most cost-effective Visual Inspection System for Pipes  or other large applications on the market.

This system features a full 360° Pan and 180° Tilt Illuminated Color Camera in a 2 in. diameter or a 1 in. diameter B/W or Color Camera for smaller pipes.

 This kit brings together a unique blend of technology, portability, ease-of-use and affordability. It is light yet rugged and with internal rechargeable batteries, you get unmatched portability with a hand-held go anywhere attitude.

 Horizontal or vertical elbows or bends, top-down or bottom-up, this Visual Inspection

System has it covered. With the Professional Monitor, you have the ability to capture images or movies on the included Compact Flash Card for easy transfer to a PC later.

The Leather Case for the monitor has a convenient neck strap for more freedom of movement during the inspection.
