Where The World Can Find "Crash Barriers "For Less !!
Cable Crash Beam barricades
Available in Hydraulic or Manually operated models.
All crash beams are rated as follows:
Navy tm-56-86-05: 1/l3.0 or 15,000 lbs @30mph 450,000 ft/lbs
k- 4 rating is 15,000 lbs @ 30 mph
k- 8 is 15,000 lbs @ 40 mph
k-12 is 15,000 lbs @ 50 mph
Enhanced Models are re-enforced for applications at High Security applications.
The clear openings range from 10.5 to 20 feet
(3200 mm to 7315 mm).
If If You need a Barrier Longer than 20 feet Please call us
Model SP TT- 9218 Swing Arm Cable Beam Barricade
Swing Gate is manually operated.
Available with a Clear opening ranges from 10.5 to 24 feet.
Ideal for use at locations where vertical lift is impractical.
Model TT218M Manuel Or Hydraulic is configured as a swing gate for use where vertical lift is impractical.
Model TT-212-EC
Drop Arm Crash Beam is an enhanced chain Model which has the highest crash rating of a Cable Beam Barricade.
Models are either cable or chain operated in the Manuel models

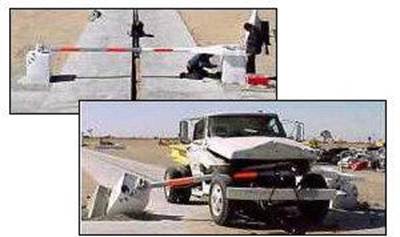

Certified by the US Department of State to stop a 15,000 pound vehicle in less than 20 feet.
Actual penetration is 5 feet
Available in a Hydraulic (H) and Manual (M) Model
All other models are raised vertically to allow passage of authorized vehicles.
SP T T 9212HEC
is a hydraulic enhanced chain Model, designed for EXTREMELY SECURE applications,
These Products are used at government facilities, embassies Nuclear Power Plants and automotive sales facilities, military bases etc.
Clear opening ranges from 10.5 to 24 feet (3,200 mm to 7,315 mm).
Certified by the US Department of State to stop a 15,000 pound vehicle in less than 20 feet.
Actual penetration is 5 feet
Available in a Hydraulic (H) and Manual (M) Model
All other models are raised vertically to allow passage of authorized vehicles.
NOTE: ALL CRASH BEAMS ARE 12' CENTER BEAMS AS A STANDARD LENGTH .
ADDITIONAL FEET MAY VARY DEPENDING ON THE MODEL -
THE COST IS BASED ON THE LENGTH
AND THE RATING REQUIRED.
For more information regarding your application
Please call our office for an estimate and delivery times. 915-240-4747
