Where The World Can Find WIRELESS CMOS CAMERAS
The
V-2297-RF is a highly integrated CMOS color video camera with a 2.4GHz transmitter built into the body of the camera. The V-2297-RF uses the latest 2.4GHz technology and has a 50mW power rating with a range of up to 300ft. The Receiver (MODEL V-RC24, not included) outputs composite video which can directly interface with a VCR or TV monitor.The V-2297-RF uses 7-12 VDC and conumes 55mA @ 7 VDC. Other features include: on-chip auto exposure, automatic gain control, and auto white balance. The camera comes with either a 3.6mm lens (V-2297-RF-3.6) or a 6.0mm lens (V-2297-RF-6.0).
This camera is ideal for all types of low cost video application where a hard wire is not practical. Applications include wireless security surveillance, color identification in machine vision and robotic applications.
| SPECIFICATIONS | |
| Imager | CMOS Sensor |
| Format | 1/3" |
| Array Size | NTSC - 510 × 492 PAL - 628 × 582 |
| Resolution | 310 TV Lines |
| Scanning | 2:1 Interlace |
| Video Output | 1 Vp-p, 75 ohm |
| Auto Shutter | 1/60 to 1/15,000 sec. |
| Image Area (mm) | NTSC - 4.95 × 3.54 PAL - 5.96 × 4.23 |
| Gamma Correction | 0.45 - on/off |
| S/N Ratio | >38dB |
| Minimum Illumination | Color: 15 lux B&W: 3 lux |
| Supply Voltage | 7-12 VDC |
| Power Requirements | 20mA @ 9 VDC |
| Operating Temperature | -10°C to 55°C |
| Humidity Limits | 0 - 95% Humidity |
| Sensor Package | 48 Pin LCC |
| Price | PRICED AT JUST $349.95 |
| Transmitters | |
|
Frequency Range
|
2350-2485 MHz
|
|
Video Input
|
1V p-p
|
|
Voltage Range
|
15V-7.5V (35mA)
|
|
Output Power
|
+10dBm
|
|
Channel Bandwidth
|
20 MHz
|
|
Phase Noise@10k
|
-86dBc/Hz
|
|
Frequency Stability
|
-0.1% or better
|
|
O.T.R.
|
0° to 50° Celsius
|
|
Video Input Impedance
|
75 Ohm
|
|
Line Of Sight
|
300 feet (V-TR2400-50)
1500 feet (V-TR2400-350) |

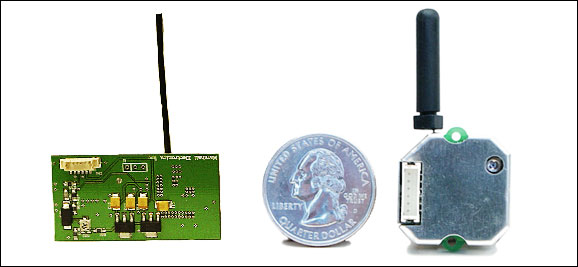

V-TR2400-350 ($399.00) V-TR2400-50 ($365.00)
The
V-TR2400-50 and V-TR2400-350 use the latest 2.4GHz technology and offer an operating range of up to 1500ft. The V-TR2400-50 measures less than one-inch square and has a 50mW power rating with a range of up to 300ft. The V-TR2400-350 transmits video with an operating range of up to 1500ft.It measures 2.5 × .8 inches. Both transmitters can accommodate NTSC or PAL signals automatically and operate with the V-RC24 4-channel receiver.
Both of these transmitters can operate on a 9V battery for up to 4 hours.
Power supply not included for transmitters.
Transmitters come with 6” color coded wire leads.
V-RC24 $175.00
The V-RC24 receiver comes complete with power supply, RCA to RCA cables, and users manual.
