BI-FOLD SERVICE WINDOWS!!
Making Walk Up or drive up food Service Convenient
Several Models Available
Satin Anodized or Dark Bronze finish
Electric Fully Automatic /semi automatic/Self Closing models
Two Styles

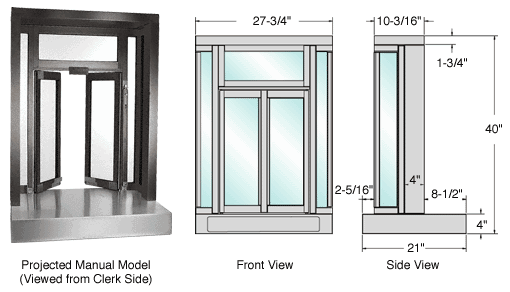

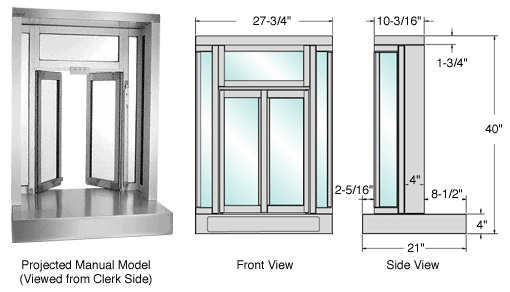

Projected Bi-Fold Windows

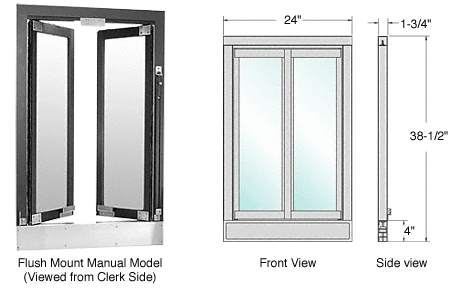

Flush Mount Bi-Fold Service Window
Select From Manual, Semi-Automatic and Fully Automatic Operation
Available in Stock or Custom Sizes, and Stock or Custom Finishes
Low Voltage 24V DC System UL/CSA Approved Class Two Transformer
Bi-Fold Service Windows are perfect for food handling Pass thru applications
Features include two panels that simultaneously open outward towards the customer
are designed with a burglar bar for extra security.
Projected from wall and Flush Mounted models are available in three different configurations in some models:
MANUAL - Both panels move simultaneously as either panel is manually operated.
MANUAL operates with a jamb mounted push button OFF defeats all functions and closes the two panels. UL/CSA Approved Class 2 Transformer.
SEMI-AUTOMATIC - Opening the window is achieved by pushing on the hip activated slide bar.
Step away from the window and the two panels automatically close.
Note some models of fully Automatic Bi fold windows have been discontinued
FULLY AUTOMATIC - Opening the window is as easy as stepping in front of the built-in infrared sensing device.
Simply step away and the two panels automatically close.
The Automatic/Off/Manual Switch provides three different settings:
AUTOMATIC operates with the infrared sensing device;
Custom sizes and custom paint colors are available by special order.
Additional Product Information:
Specifications
Materials: Aluminum Extrusion; Pile Weather-strip; Glazing Vinyl; Stainless
Steel Shelf or Stainless Steel Sill
Glazing: 1/4 inch (6 millimeter) Clear Tempered Glass
Stock Finishes: Satin Anodized or Dark Bronze Finish
Bi-Fold Configuration: Fully Automatic; Self-Closing; Manual
To Determine Rough Opening: Add 1/2 Inch (12.7 millimeter) to Width, 1/4
Inch (6.4 millimeter) to Height
Controls: Infrared Sensing Device and Manual/Off/Automatic Switch Included in Stainless Steel Shelf (attached).
Jamb Mounted Push Button Switch for Manual Operation.
Header Mounted Master Power Switch and Push-to-Reset Master
Fuse
Power Requirements: 115V AC
|
available in a Satin Anodized alum finish available in Fully Automatic /semi automatic /and self closing manual This is Projected Bi-Fold Service Windows $ 2827.00 plus freight |
 |
|
Bronze finish available in All Electric Fully Automatic Simi automatic and Self Closing Models Projected Bi-Fold Service Windows Call for Prices |
 |
|
Custom Size and Finishes available Projected Bi-Fold Service Windows Call with your specific window rough Frame size |
Satin Anodized All
Fully Automatic Flush Mount Bi-Fold Service Window
Select From Manual,
Semi-Automatic
Fully Automatic Operation
Available in Stock or Custom Sizes, and Stock or Custom Finishes
Low Voltage 24V DC System UL/CSA Approved Class Two Transformer
|
Satin Anodized All Electric Fully Automatic Flush Mount Bi-Fold Service Window |
|
|
Flush Mount Bi-Fold Service Window available in Manual and o longer available in a fully automatic Model Starting $ 1862.00 plus Freight Self Closing starting at $ 2495.00 plus freight
|
|
|
Custom painted finishes Various Size or Custom Sizes available or some standard sizes in a Flush Mount Manuel or self closing Bi-Fold Service Window available in Manuel or self closing Call for Prices 915-240-4747
|
