FeelSafer.com

 Surface and In-Ground

Traffic Road spikes

 In Ground Panels

Available in 3 ' Foot panels with a ramp height of only 3"  1/4"  made with

COLD ROLLED STEEL

Model SP DC Model -36" NON latch MODEL

Spike Panels 3 foot sections-

3 foot  is a non latch panel  for  above ground installation



 1/4" Ramp and  Standard Top Plate - weight 135 lbs.  Non Latch  $ 595 each panel plus freight

 1/4" Ramp and  Standard Top Plate - weight 135 lbs   Latch  Down Teeth  $ 795  each panel plus freight

3/8 THICK HEAVY DUTY  3’ foot panel NON LATCH TEETH $ 895.00 plus freight

HEAVY DUTY 3/8"  THICK RAMP Ramp PLATE WITH  ("latch down") $ 995.00







In Ground Panels

with Latch down Feature

These  CS Panels are available in Yellow Or Red

The units are now Powder coated instead of painted

OPTION #  1

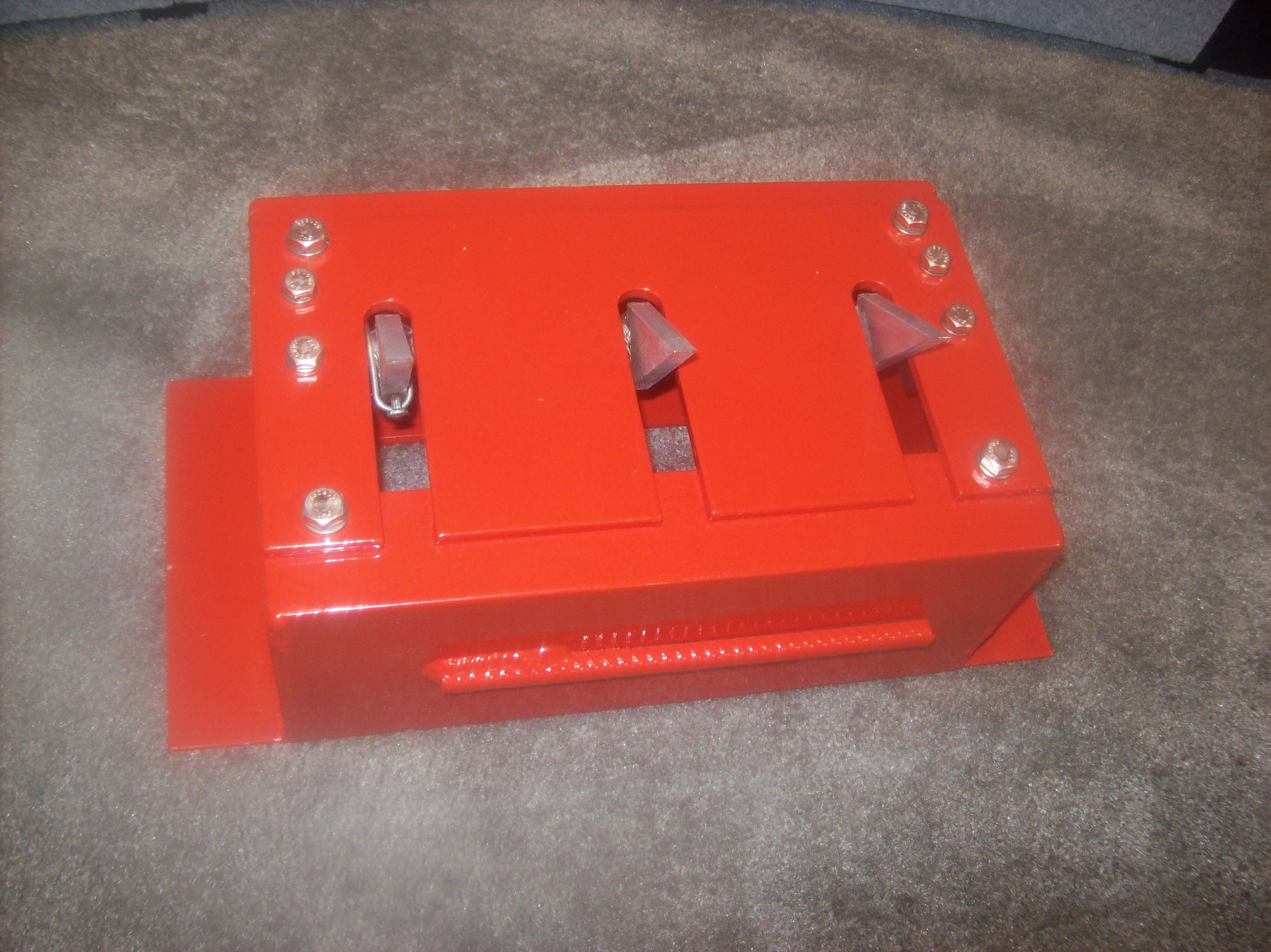

     THE SURFACE MOUNTED  3 FOOT  SPCS-36-SM-LD 1/4" Surface

   Designed for an axel load of up to 22,000 lbs comes with latch down teeth

Special offer   Regular Price $ 795   on sale  for $ 695.00 each

12  Plus units  $675.00 each plus freight

both Models Features Powder coated  Panels in  either Fire Engine Red or Yellow



OPTION # 2

SPCS-36-SM-LD 3/8"  Thick Heavy duty Ramp Surface

UPGRADE TO  A 3/8" RAMP  WITH LATCH DOWN TEETH AND HEAVIER RAMP PLATE

Upgrade to a 3/8" Ramp with angle iron supports

FOR  HEAVIER USAGE BY- SEMI TRUCKS

Save Regular Price $ 895 each on Sale for $  795.00 each  plus freight





 Note:  zinc coat then Painted







Single top Plate Surface mounted Road spike Panels

Option 3

Heavy duty panel is a single 3/8”   thick Single top Plate

 Note: These units have two shafts 18” Shafts with 5 teeth per shaft

 Each has 6  recessed   Bolts that Secure the  Single Piece Top Plate to the Frame

  There are literally thousands of these units   Field  TESTED

The Manufacturer of these Products has  over 25 years Experience Making These kinds of Products

      1/4" model  Please note that  the List price $875 each plus freight

      3/8" model  Please note that  the List price $1275 each plus freight

       End caps   are $ 295 Pair Plus freight.





Call about  spike panels where the teeth  are  offset from center  on the low end of the panel

these road spikes are  designed for low   profile cars, sports cars and exotic cars only a few inches off the ground



The  approach angle on Traffic spikes is important to consider

  example  a semi trucks exits a gate crossing the panels .  then  starts to turn to exit the lot or yard , as  the back tires are approaching  the spikes  the truck begins to turn so the back tires are now at and angle

less that 90 degrees as they cross the panels, this can cause tire damage to most tires, so depending on your situation, this may be a consideration

with these panels the teeth are  positioned down  from center from the top allowing  the angle at which   the tires  to  cross at a  greater angle  than straight on

Surface mounted low profile panels are approx $ 1550 each  depending on quantity

additionally have fewer shafts or bearing blocks

Call for more Information 915-240-4747



In Ground Traffic Panels

3 Foot surface Panel

In Ground Latch down Model

Traffic Controller

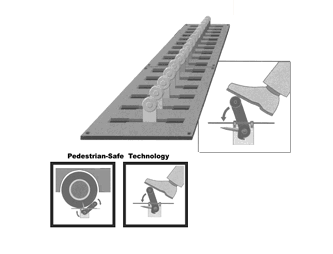

The In -ground SPCS36FM   flush-mounted traffic controller   WITH A 1/4" TOP PLATE

 is designed to regulate the flow of traffic through a secured control point, by providing both a visual and physical barrier.

This unattended, one-way traffic controller will work with any width roadway by installing 36" modules end-to-end.

This is an in ground panel that is mounted to a flat concrete surface

Teeth extent 2 1/4" above grade

weight 125 lbs per panel

Long life steel alloy torsion springs (chrome vanadium),

3/8" laser-cut top plates, zinc-plated teeth,

welded steel frame.

Latch down kit standard on all units.

Available in 36" 3 foot models

Or available in 6 foot long models  or 72" modules
Measure  8" wide x 6" deep).

option #1

SP-CS36FMLD 1/4"  3 FOOT PANEL  TOP PLATE-& latch down teeth

 Save  only $ 695  each  with latch down teeth  plus freight



option #2

 SP-CS36FM 3 FOOT PANEL- 3/8"  heavy duty model  30,000 lbs. Axel Wt.

 $ 795.00 each plus freight

 Option #3

SP-CS36FMLD Z 1/4"      With Standard Top plate- COMPLETELY Zinc Coated for Salty  wetlands

TEETH/BEARING BLOCK-FRAME-TOP PLATE ALL GALVANIZED

$ 895.00 each plus freight

3 ft in ground model













In Ground Panels

Model SPDC-72"NL NON LATCH

1/4" TOP PLATE  flush mount in ground spike panel-6 FOOT PANEL Super special  Just $ 1150.00   3 plus  $1100 each



Zinc Coated and Heavy duty Top Plate

Model SPDC-72"LD 1/4" LATCH DOWN    $ 1250.00

Zinc Coated and Heavy duty Top Plate

Model SPDC-72"LD 3/8" LATCH DOWN  $1550.00 plus freight

Model SPDC-72"LD 1/2" LATCH DOWN    $1850.00





 In ground   6’ foot  below grade directional traffic controller

Model Directional Controller  72"  or  6 foot  NON-LATCH-Panel  Model

This is an in ground flush mounted traffic control device Panel

Special $ 1375.00 each non latch model

Special $ 1675.00 each   latch  down teeth model





SUPER  HEAVY DUTY MODEL 1/2" STEEL  Top Plate COLD ROLLED Steel

Model SPDC-72-HD  1/2 NL NON LATCH TEETH"  military model

Special $ 1875.00 each





915-240-4747

or email us your request







NoN Penetrating

looks like it will damage but that the deterrent like a dummy  camera

SP DC 72 LD LATCH DOWN (NON Penetrating Model ) call for pricing



 FEELSAFER.COM

Call toll free Today

915-240-4747

915-240-4747



For Pricing Call 915-240-4747

or email us your request



Please indicate  how many feet required & Model desired Surface or In-ground spike panels
